21.9 inch Industrial Bar-Type TFT LCD Screen for Factory Automation Monitors
Produktdetails
| Panelgröße | 21.9" | Auflösung | 1920*712 |
|---|---|---|---|
| Helligkeit | 1000 (typ.) | Betriebstemp. | 0~50℃ |
| Aktiver Bereich | 527.04*195,5 mm (A.A.) | Umrissdimension | 548.4*222.2*14.5mm |
| Name | Stangen-Art LCD-Anzeige | ||
| Hervorheben | 21.9 inch bar type LCD screen,industrial TFT LCD display,factory automation monitor screen |
||
Produkt-Beschreibung

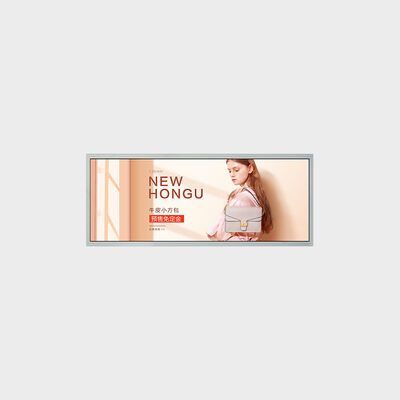

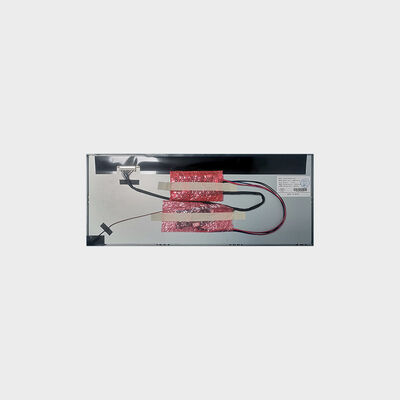

21.9 inch Industrial Bar-Type TFT LCD Screen for Factory Automation Monitors
High-performance 21.9-inch industrial bar-type TFT LCD display engineered specifically for factory automation monitoring applications.
Product Advantages
- Advanced cutting technology with 3 cutting machines and 2 production lines supporting lengths up to 1.7m (75 inch)
- Precision manufacturing ensures high yield and dimensional accuracy
- Original panel compatibility with proven reliability
- High anti-vibration construction for industrial environments
- Customizable brightness ranging from 500-2500 nits
- Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
- Commercial signage: Advertising displays and price shelves
- Public transportation: Bus, metro, and light rail billboards
- Guidance boards and elevator advertising displays
- Financial services: Bank call notice boards
- Retail applications: Name cards and supermarket displays
- Mobile advertising: Taxi advertising boards
Technical Specifications
| Model Number | LCMA-RX0219TA01-C100 |
| Brand | Rogin |
| Series | Bar Type LCD Display |
| Panel Size | 21.9 inch |
| Brightness | 1000 nits (Support Customized) |
| Power Consumption | 25 W |
| Resolution | 1920 × 712 |
| Active Area | 527.04 × 195.5 mm |
| Overall Size | 548.4 × 222.2 × 14.5 mm |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Aspect Ratio | 16:5.93 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
