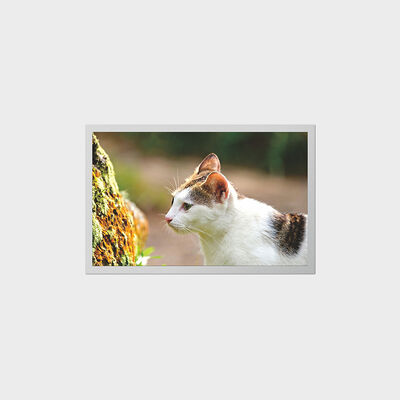

12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices

  • 12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices
  • 12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices
Herkunftsort SHENZHEN
Markenname ROGIN
Modellnummer LCMA-RX0121GR03-C150
Min Bestellmenge 5
Preis Price is negotiable.
Verpackung Informationen Kartons oder Holzfälle
Lieferzeit 6-8 Wochen
Zahlungsbedingungen T/T, L/C
Versorgungsmaterial-Fähigkeit Angemessenheitspunkte
Produktdetails
Name 12,1 Zoll TFT LCD-Anzeige Panelgröße 12,1 Zoll
Auflösung 1280*800 Helligkeit 1500 (typ.)
Seitenverhältnis 16:9 Aktiver Bereich 261,12 * 163,2 mm
Umrissdimension 277,7 * 180,6 * 9,5 mm Schnittstelle LVDS (1 Kanal, 8-Bit)
Hervorheben

12.1 inch TFT LCD display

,

low power consumption LCD

,

medical device LCD display
Hinterlass eine Nachricht
Produkt-Beschreibung
12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices
Product Advantages
  • Brightness customization 700-5000cd/m²
  • Outdoor sunlight readable
  • Low power consumption
  • High uniformity up to 85%
  • Long lifetime, 50K hours (Typ), up to 80K hours
  • Aluminium backlight structure with good heat dissipation
  • Wide temperature range up to -30°C to 80°C
  • High shock resistance and high stability
Product Applications
  • Bus Station Signage Board
  • Intelligent Charging Pile
  • Outdoor Electronic News Reading Board
  • Intelligent Express Cabinet
  • Vending HMI Machine
  • Commercial Advertising Machine
  • Attractions Information Inquiry Machine
  • Community Information Board
12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices 0 12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices 1 12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices 2 12.1 inch TFT Display With Low Power Consumption LCD for Portable Medical Devices 3
Specifications
Model LCMA-RX0121GR03-C150
Brand Rogin
Series High Brightness LCD Display
Panel Size 12.1 inch
Brightness 1500nits (Support Customization)
Resolution 1280 × 800
Active Area 261.12 × 163.2mm
Overall Size 277.7 × 180.6 × 9.5mm
Viewing Angle 85/85/85/85
Interface Definition eDP (2 Lanes)
Backlight Type WLED
Contrast Ratio 1200:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature -20°C to 70°C
