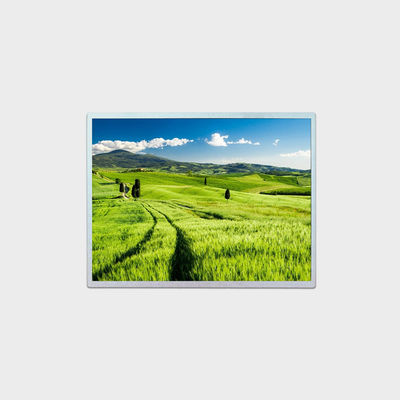

10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine

  • 10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine
Herkunftsort Shenzhen
Markenname ROGIN
Modellnummer LCMA-RX0104GR02-C150
Min Bestellmenge 5
Preis Price is negotiable.
Verpackung Informationen Kartons oder Holzfälle
Lieferzeit 4-6 WOCHEN
Zahlungsbedingungen T/T, L/C
Versorgungsmaterial-Fähigkeit Angemessenheitspunkte

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Panelgröße 10.4 Auflösung 1024*768
Helligkeit 1500 (Typ.) Seitenverhältnis 16:9
Aktiver Bereich 210.43*157.824 mm Umrissdimension 227*175,8*9,2 mm
Hervorheben

10.4 inch TFT LCD display

,

1500nits brightness LCD screen

,

outdoor vending machine display
Hinterlass eine Nachricht
Produkt-Beschreibung
10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine
High Brightness LCD Product Features
  • Brightness customization 700-5000cd/m²
  • Outdoor sunlight readable
  • Low power consumption
  • High uniformity up to 85%
  • Aluminium backlight structure with good heat dissipation
  • Wide temperature range up to -30°C-80°C
  • High shock resistance and high stability
High Brightness LCD Product Applications
  • Bus Stop Station
  • Intelligent Charging Pile
  • Outdoor Electronic News Reading Board
  • Intelligent Express Cabinet
  • Vending Machine
  • Commercial Advertising
  • Attractions Information Inquiry Machine
  • Community Information Board
10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine 0 10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine 1 10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine 2 10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine 3
High Brightness LCD Data Sheet
Brand Rogin
Series High Brightness LCD Display
Panel Size (inch) 10.4
Model LCMA-RX0104GR02-C150
Brightness 1500
Resolution 1024*768
Active Area 210.43*157.824
Overall Size 227*175.8*9.2
Viewing Angle 85/85/85/85
Interface Definition LVDS (1 ch, 6/8-bit)
Backlight Type WLED
Contrast Ratio 900:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature -30-80℃
