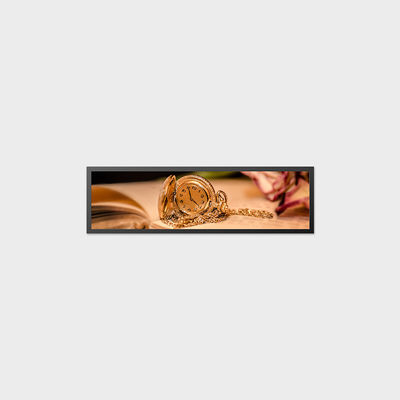

28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution

  • 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution
Herkunftsort Shenzhen
Markenname ROGIN
Modellnummer LCMA-RX0284TA01-C070
Min Bestellmenge 5
Preis Price is negotiable.
Verpackung Informationen Kartons oder Holzfälle
Lieferzeit 6-8 Wochen
Zahlungsbedingungen T/t, l/c
Versorgungsmaterial-Fähigkeit Angemessenheitspunkte

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name TFT-LCD-Bildschirm mit Balkenart Panelgröße 28.4
Auflösung 1920*511 Helligkeit 700 (Typ.)
Betriebstemperatur. 0 ~ 50 ℃ Aktiver Bereich 698.4*186mm
Umrissdimension 727.4*215*19.3mm
Hervorheben

28.4 inch bar type LCD display

,

customized touch panel display

,

high brightness bar display solution
Hinterlass eine Nachricht
Produkt-Beschreibung
28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution
28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution
Product Advantage
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Application
  • Commecial signage : Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 0 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 1 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 2 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 3
Specifications
LCMA-RX0284TA01-C070
Brand Rogin
Series Bar Type TFT LCD Display
Panel Size 28.4 inch
Model LCMA-RX0284TA01-C070
Brightness 700nits
Resolution 1920*511
Active Area 698.4*186mm
Overall Size 727.4*215*19.3mm
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 4000:1
Touch Panel Without
Operating Temperature -20-60 ℃
