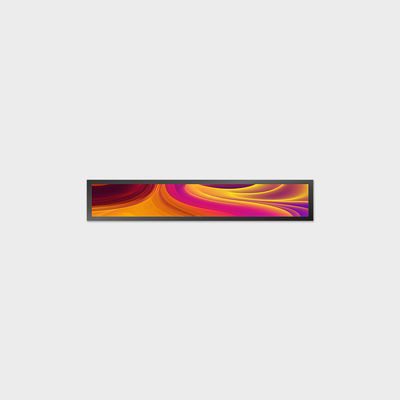

36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion

  • 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion
Herkunftsort Shenzhen
Markenname ROGIN
Modellnummer LCMA-RX0366TA02-C100
Min Bestellmenge 5
Preis Price is negotiable.
Verpackung Informationen Kartons oder Holzfälle
Lieferzeit 6-8 Wochen
Zahlungsbedingungen T/t, l/c
Versorgungsmaterial-Fähigkeit Angemessenheitspunkte

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name TFT-LCD-Bildschirm mit Balkenart Panelgröße 36.6"
Auflösung 1920*290 Helligkeit 1000 (Typ.)
Betriebstemperatur. -20 ~ 60 ℃ Aktiver Bereich 919.296*138.85mm
Umrissdimension 960*174,35*16,9 mm
Hervorheben

36.6 inch bar type LCD display

,

high brightness bar type display

,

1920x290 resolution bar display
Hinterlass eine Nachricht
Produkt-Beschreibung
36.6 inch Bar Type Display With 1920*290 Resolution With High Brightness Integrated Solution
36.6 inch Bar Type Display With 1920*290 Resolution With High Brightness Integrated Solution
Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 0 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 1 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 2 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 3
Specifications
Model: LCMA-RX0366TA02-C100
Brand Rogin
Series Bar Type TFT LCD Display
Panel Size 36.6 inch
Model LCMA-RX0366TA02-C100
Brightness 1000nits
Resolution 1920*290
Active Area 919.296*138.85mm
Overall Size 960*174.35*16.9mm
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 4000:1
Touch Panel Without
Operating Temperature -20-60 ℃
