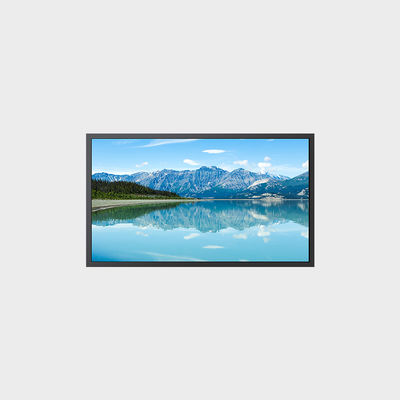

32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100

  • 32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100
Herkunftsort Shenzhen
Markenname ROGIN
Modellnummer LCMA-RX0320GI04-C100
Min Bestellmenge 5
Preis Price is negotiable.
Verpackung Informationen Kartons oder Holzfälle
Lieferzeit 6-8 Wochen
Zahlungsbedingungen T/t, l/c
Versorgungsmaterial-Fähigkeit Angemessenheitspunkte

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name TFT LCD -Anzeige Panelgröße 32 "
Auflösung 3840*2160 Helligkeit 1000 (Typ.)
Betriebstemperatur. 0 ~ 50 ℃ Aktiver Bereich 698.4*392,85 mm
Umrissdimension 751.5*446.01*30.5mm
Hervorheben

32 inch TFT display with touch panel

,

high brightness LCD display with customization

,

TFT display with high luminance support
Hinterlass eine Nachricht
Produkt-Beschreibung
32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100
Product Attributes
Attribute Value
Name TFT LCD Display
Panel Size 32"
Resolution 3840*2160
Brightness 1000 (Typ.)
Operating Temp. 0~50℃
Active Area 698.4*392.85mm
Outline Dimension 751.5*446.01*30.5mm
Product Description

32 Inch TFT Display With High Lumin Solution Support LVDS Interface LCMA-RX0320GI04-C100

Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 0 32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 1 32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 2 32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 3
Specifications

LCMA-RX0320GI04-C100

Brand Rogin
Series LCD Display
Panel Size 32 inch
Model LCMA-RX0320GI04-C100
Brightness 1000
Power Consumption 131W
Resolution 3840*2160
Active Area 698.4*392.85mm
Overall Size 751.5*446.01*30.5mm
Viewing Angle 89/89/89/89
Interface Definition 51pins V-by-One 8 lane
Backlight Type WLED
Contrast Ratio 3000:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature 0~50 ℃
